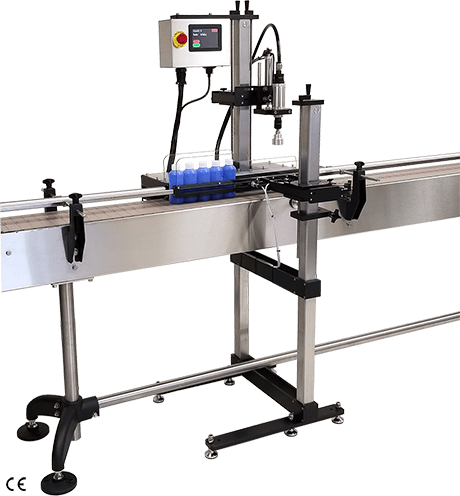

The Kinex Relia-Cap is an automatic screw capping machine that mounts to an existing conveyor. At a rate of up to 40 caps per minute, the Relia-Cap tightens caps from 10 - 130mm in diameter, and accommodates bottles from 0.5 - 12 inches wide. We designed the Relia-Cap to provide our customers with a completely turn-key, self-contained, and easy to adjust automatic bottle capping machine.
The Relia-Cap automatic screw capper features a touchscreen display and easy to navigate menu. It displays real time production information, including the number of caps it has tightened and the production rate in bottles per minute. All program adjustments are at your fingertips to provide you with complete control over the capping machine. Capping programs can be saved and stored for future use.
Relia-Cap
Automatic Capping Machine
Other Products You Might Like:
The Relia-Cap can be used with a cap feeder installed upstream of the Relia-Cap to preplace the caps onto the bottles, or an operator can preplace the caps onto the bottles. A conveyor and cap feeder are not included with the Relia-Cap.
The capping heads installed on the Relia-Cap automatic bottle capping machine are the same capping heads installed on our SA™ capping machines. These capping heads have a long and well-respected track record for delivering precision torque control and repeatable torque accuracy. The torque output is easily adjustable by rotating an external torque dial. We will custom build your capping head to match the torque requirements of the caps you will be tightening. Optional oil-free capping heads, stainless steel capping heads or exhaust capture capping heads are also available.
Automatic capping machines are used in the food and beverage industry, chemical industry, e-liquid industry, pharmaceutical industry, and countless others. The Relia-Cap applies plastic and metal threaded caps onto plastic, glass and metal containers. It applies a multitude of cap styles including dropper caps, yorker caps, chubby gorilla caps, unicorn caps, tamper evident caps, push-pull caps, sports caps and many more.
Automatic Screw Capping Machine
Key Features
- Up to 40 Caps Per Minute
- Stainless Steel and Anodized Aluminum Construction
- Easy to Set-up. Easy to Adjust
- Touchscreen Display & Navigation
- Easy to Navigate Menu
- Calculates and Displays the Production Rate (Bottles/Minute)
- Counts and Displays the Number of Bottles Capped
- Saves and Stores Capping Programs for Future Use
- External Torque Adjustment Dial
- Excellent Repeatable Torque Accuracy
- The Relia-Cap Automatic Capping Machine is CE marked (CE certified)
Specifications & Pricing
| Price | $9,950
|
| Minimum Cap Size | 10mm |
| Maximum Cap Size | 130mm |
| Torque Range | 0-250 inch pounds |
| Min Bottle Width | 0.5 inches |
| Max Bottle Width | 12 inches |
| Min Bottle Height | 1.5 inches* |
| Max Bottle Height | 17 inches |
| Height | 64 inches |
| Width | 24 inches |
| Depth | 32.5 inches |
| Weight | 85 lbs. |
| Air Requirements | 90-125 PSI @ 8 SCFM |
| Electrical Requirements | 100-240VAC, 50/60HZ. Single Phase |
* Pucks can be utilized to allow the machine to accept containers less than 1.5 inches in height.
Testimonials
Just wanted to let you know how please we have been with our Relia-Cap. It is a real improvement over the old Accutek capper we had before. The Relia-Cap is faster and much more accurate. We are now able to cap bottles from 2 ounces through 2.5 gallons without any issue. We just finished seven different runs of more than 2,000 bottles each without any issue. We have also been pleased with the help we have received to answer the few odd questions that have come up. I have no hesitation in recommending the Relia-Cap. It is exactly as described and performs as promised.
Alan Fischer, Photo Systems
Dexter, Michigan, USA
How To Order
If you are interested in purchasing an Relia-Cap Automatic Capping Machine, we will require samples of your caps and containers. This will allow us to test the Relia-Cap with your caps and containers to ensure that you will be very pleased with your purchase. If you would like, we will be happy to send you videos of the Relia-Cap tightening your caps onto your containers. In addition, we will record, save, and share with you all of the recommended settings so you can get up and running quickly.
When sending samples, please include the following:
- Your complete contact information.
- 8 empty containers for up to five unique applications.
- 25-30 corresponding caps for each unique application.
Please send the samples to the following address:
Kinex Cappers
Attn: Sales Department
6 Columbia Drive, Unit B
Amherst, NH 03031
USA
