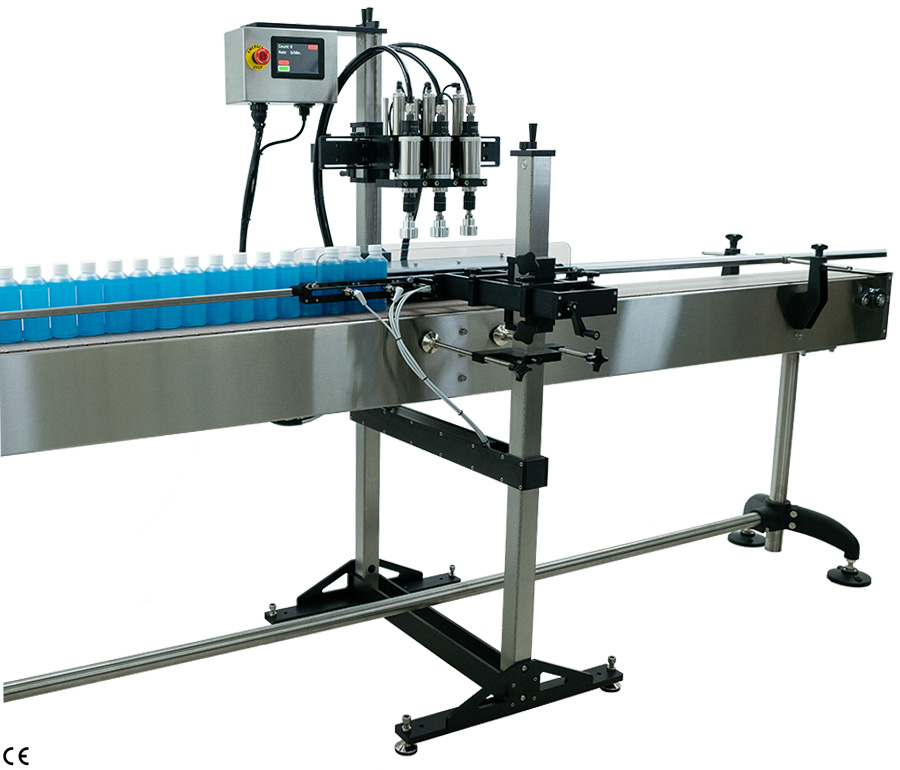

The Auto-Max™ automatic cap tightener tightens screw-on caps onto containers at speeds of up to 105 caps per minute. The Auto-Max™ automatic capping machine offers extreme flexibility. It can be purchased with a single capping head or with up to four capping heads to increase speed and productivity. It can tighten caps as small as 10mm to as large as 130mm and accommodate bottles from 0.5 inches to 12 inches wide. The integrated design makes changeover from one application to the next fast and easy.
The Auto-Max™ automatic screw capping machine features a touchscreen display and easy to navigate menu. It displays real time production information, including the number of caps it has tightened and the production rate in bottles per minute. All program adjustments are at your fingertips to provide you with complete control over the capping machine. Capping programs can be saved and stored for future use.
Auto-Max™
Automatic Cap Tightener
Testimonial
Wanted to take a couple of minutes to write and pass along how much we love our Dual-Head Auto-Max Capping Machine. Combining the capper with our filling and lot printing machines, we are now processing three times what we were doing by hand. Also, and this means a lot, when we have the occasional need for technical support, it’s right there without a lot of waiting. So, thanks for all of this and keep up the good work.
Andy Biro, Xtreme Aquatic Foods, Inc
Melbourne, Florida, USA
Other Products You Might Like:
The capping heads installed on the Auto-Max™ provide outstanding repeatable torque accuracy. The torque output is easily adjustable by rotating an external torque dial. Optional oil-free capping heads, stainless steel capping heads and exhaust capture capping heads are also available. The Auto-Max™ is constructed of stainless steel and anodized aluminum for exceptional corrosion resistance as well as excellent strength and durability.
Automatic bottle capping machines are used in the e-liquid industry, food and beverage industry, chemical industry, pharmaceutical industry, and many more. The Auto-Max™ automatic chuck capping machine applies a multitude of cap styles including dropper caps, yorker caps, chubby gorilla caps, unicorn caps, tamper evident caps, push-pull caps, sports caps and countless others.
Automatic Screw Capping Machine
Key Features
- Up to 105 Caps Per Minute
- Stainless Steel and Anodized Aluminum Construction
- Easy to Set-up. Easy to Adjust
- Touchscreen Display & Navigation
- Easy to Navigate Menu
- Calculates and Displays the Production Rate (Bottles/Minute)
- Counts and Displays the Number of Bottles Capped
- Saves and Stores Capping Programs for Future Use
- External Torque Adjustment Dial
- Excellent Repeatable Torque Accuracy
- The Auto-Max™ automatic cap tightener is CE marked (CE certified)
Specifications & Pricing
 |
Auto-Max 1 Head |
Auto-Max 2 Head |
Auto-Max 3 Head |
Auto-Max 4 Head |
| Price | $13,950 | $16,950 | $19,950 | $22,950 |
| Caps Per Minute
Rates indicated are typical. Actual rates may vary. |
60 | 80 | 95 | 105 |
| Minimum Cap Size | 10mm | 10mm | 10mm | 10mm |
| Maximum Cap Size | 130mm |
130mm | 130mm | 130mm |
| Torque Range | 0-250 inch pounds | 0-250 inch pounds | 0-250 inch pounds | 0-250 inch pounds |
| Min Bottle Width | 0.5 inches | 0.5 inches | 0.5 inches | 0.5 inches |
| Max Bottle Width | 12 inches | 12 inches | 12 inches | 12 inches |
| Min Bottle Height | 1.5 inches* | 1.5 inches* | 1.5 inches* | 1.5 inches* |
| Max Bottle Height | 17 inches | 17 inches | 17 inches | 17 inches |
| Height | 64.2 inches |
64.2 inches | 64.2 inches | 64.2 inches |
| Width | 30 inches |
30 inches | 30 inches | 30 inches |
| Depth | 39.6 inches |
39.6 inches | 39.6 inches | 39.6 inches |
| Weight | 140 lbs. | 147 lbs. | 154 lbs. | 161 lbs. |
| Air Requirements | 90-125 PSI @ 10 SCFM |
90-125 PSI @ 14 SCFM | 90-125 PSI @ 18 SCFM | 90-125 PSI @ 22 SCFM |
| Electrical Requirements | 100-240VAC, 50/60HZ. Single Phase |
100-240VAC, 50/60HZ. Single Phase |
100-240VAC, 50/60HZ. Single Phase |
100-240VAC, 50/60HZ. Single Phase |
* Pucks can be utilized to allow the machines to accept containers less than 1.5 inches in height.
How To Order
If you are interested in purchasing an Auto-Max™, we will require samples of your caps and containers. This will allow us to test the Auto-Max™ with your caps and containers to ensure that you will be very pleased with your purchase. If you would like, we will be happy to send you videos of the Auto-Max™ tightening your caps onto your containers. In addition, we will record, save, and share with you all of the recommended settings so you can get up and running quickly.
When sending samples, please include the following:
- Your complete contact information.
- 10-12 empty containers for up to five unique applications.
- 40-50 corresponding caps for each unique application.
Please send the samples to the following address:
Kinex Cappers
Attn: Sales Department
6 Columbia Drive, Unit B
Amherst, NH 03031
USA
